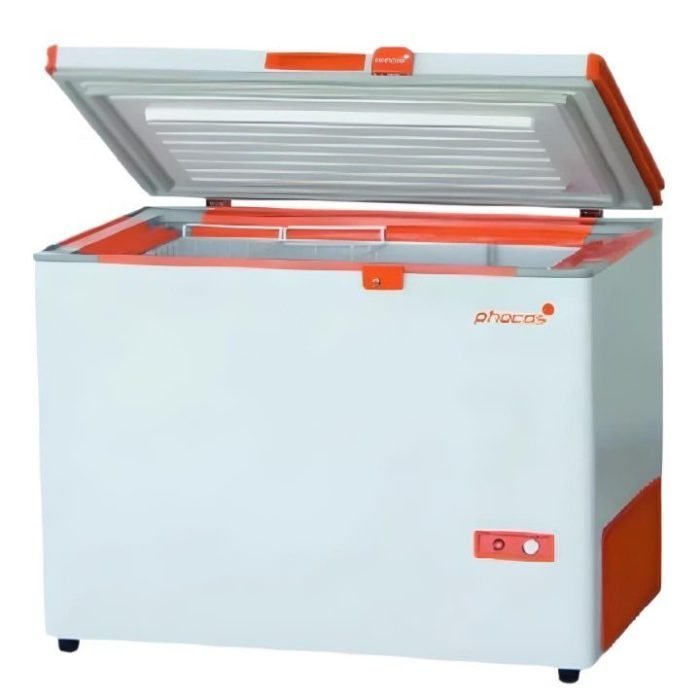

8.4 cu ft (238L) Phocos Solar Freezer
The Phocos FR-B Series DC chest refrigerator/freezer with BOOST feature offers the most flexible solution for off-grid and edge-of-grid refrigeration in the market today. The unique BOOST feature provides the ability to choose between best cooling performance and highest efficiency to serve a variety of uses. In the field, all models can be used with 12 V or 24 V batteries, and can operate as a refrigerator or freezer by simply adjusting the thermostat.
The FR-B Series has been designed to maximize reliability by utilizing a maintenance-free brushless DC compressor for direct connection to a battery and long-lasting mechanical thermostat. An aluminum inner-lining and drain plug allow for easy clean up. FR-B refrigerator/freezers are also internally protected against low voltage and reverse polarity conditions.
| Product Model | FR230B |
|---|---|
| System Voltage(V) | 12/ 24 |
| Type of Compressor | DC |
| Capacity (L/ cu ft) | 238/ 8.4 |
| Input Voltage Range for 12v / 24v System (V) | 10.4 - 16.8 / 21.3 - 31.5 DC |
| Rated Power (W) | 80 |
| Recommended Fuse for 12v / 24v System (A) | 15/ 7.5 |
| Daily Power Consumption (Cooling) @ 25°C/77°F Ambient Temp. (kWh/ day)* | 0.34 |
| Daily Power Consumption (Freezing) @ 25°C/77°F Ambient Temp. (kWh/ day)* | 0.61 |
| Adjustable Internal temperature | Digital with LED Display of Internal Temperature |
| Insulation (mm/ inches) | 110/ 4.5 |
| Temperature Range Cooling (°C/°F) | 0°C / 32°F - 10°C / 50°F |
| Temperature Range Freezing (°C/°F) | Up to -18°C/-0.4°F |
| Product Dimensions W x D x H (mm/ inches) | 1035*850*750/ 41*34*30 |
| Product Weight (Kg/ lb) | 80/ 160 |
| AC Power Compatibility | AC/ DC Adapter Available on Request |
