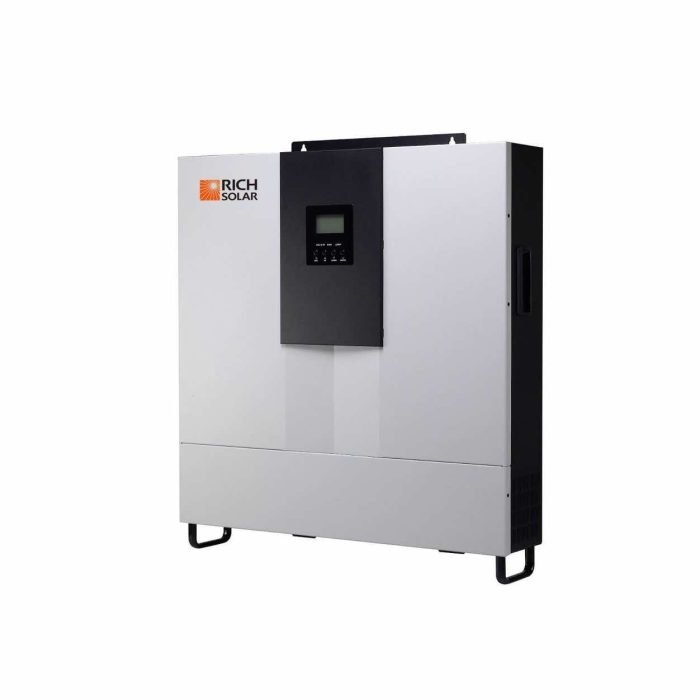

6000 Watt (6kW) 48 Volt Off-grid Hybrid Solar Inverter

Original price was: $2,600.00.Current price is: $1,880.00. + Shipping

RS-H6048 Features

Pure sine wave inverter
Selectable output voltage at 120VAC/208VAC/240VAC depending on applications
Built-in 2 strings of MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers

Our Promise

  • Done Satisfaction Guaranteed
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • Apple Pay

Description

Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Maximum 3 units in parallel operation for single phase, split phase and three phase applications.
Rated Power: 6000VA/6000W
Parallel Capability: Yes, 3 units

INPUT

Rated Input Voltage: 110/120 VAC(L-N or L1-N-L2)
Input Voltage Range: “95 ~ 140 VAC (For Personal Computers), 65 ~ 140 VAC (For Home Appliances)”
Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 110/120 VAC(L-N or L1-N-L2)
Efficiency(Peak): 90%
Transfer Time: “10 ms (For Personal Computers), 20 ms (For Home Appliances)”
Waveform: Pure sine wave

BATTERY

Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 60VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 145 VDC
Number of MPP Trackers: 2
Maximum PV Array Power: 4000 W x 2
MPP Range @ Operating Voltage: 60 VDC ~ 115 VDC
Maximum Solar Charge Current: 80 A x 2
Maximum AC Charge Current: 60 A
Maximum Charge Current: 220 A
Maximum MPPT Charging Efficiency: 96%
Maximum AC Charging Efficiency: 92%

OPERATING ENVIRONMENT

Humidity: 5% ~ 95% non-condensing
Operating Temperature: -10°C ~ 50°C
Storage Temperature: -15ºC ~ 60ºC

PHYSICAL

Dimension(D X W X H): 130 x 622.6 x 610 mm
Net Weight: 30 kg
