400 Watt RV Solar Kit by Rich Solar

Original price was: $700.00.Current price is: $690.00. + Shipping

— OR  —

Our Promise

  • Done Satisfaction Guaranteed
  • Done Secure Payments
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • Apple Pay


This 400 watt solar kit is ideal for rooftops where space is limited. power your rv, boat, trailer and camper with 400 watt solar kit. it is our most efficient solar charging kit can generate 5.5 amps charge power and charge most single battery.

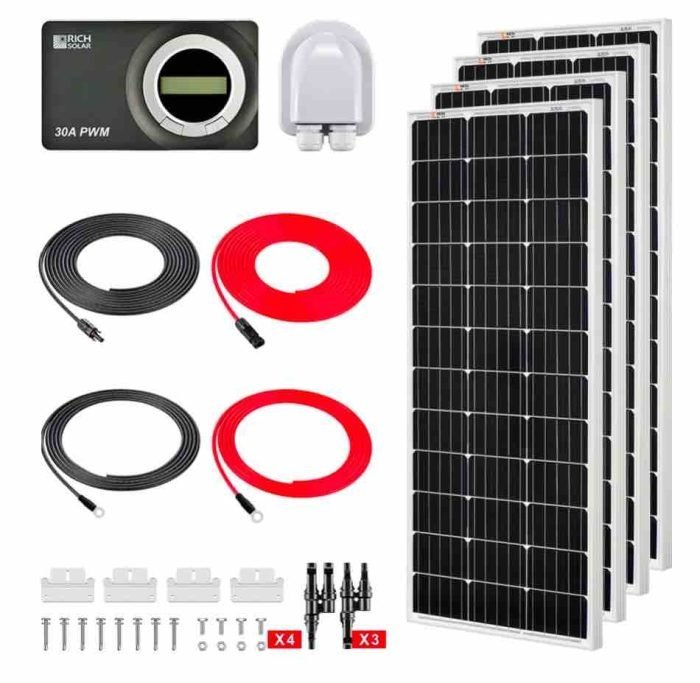

100 watt kit includes:

4 x 100 watt 12 volt solar panel (rs-m100)

1 x 30 amp pwm charge controller flush mount (rs-pwm30rv)

1 x #10 gauge 20′ solar extension cable (red), pre-assembled female connector (rs-20101)

1 x #10 gauge 20′ solar extension cable (black), pre-assembled male connector (rs-20101).

1 x #10 gauge 10′ cable (red), pre-crimped 3/8 battery terminal lug (rs-1010)

1 x #10 gauge 10′ cable (black), pre-crimped 3/8 battery terminal lug (rs-1010)

4 x mounting hardware z brackets (1 x rs-zb4c)

1 x cable entry housing (rs-c2b)

1 x inline fuse holder with fuse 30a (rs-sc30f)

3 x y branch parallel connectors one pair (rs-t2)

Simple installation

Installation is a breeze with our pre-assembled solar extension cable with solar connectors from solar panel to charge controller that doesn’t require crimping tools. since all of our products are compatible with each other, upgrades or additions simple and easy… just plug in and go with our parallel connectors.

100 watt solar panel specifications:

Maximum power(pmax): 100w

Maximum power voltage(vmp): 18.6v

Maximum power current(imp): 5.38a

Open circuit voltage(voc): 22.8v

Short circuit current(isc): 5.78a

Connectivity: solar connectors

Frame: silver anodized aluminum frame

Weight: 15 lbs

Dimensions: 45.5 x 20.5 x 1.4 in

Warranty: 25 years output warranty

30 amp pwm solar charge controller, digital lcd monitor for informative display providing real time updates of volts, amps, and amp hours.

Nominal system voltage: 12/24vdc or auto

Battery input voltage range: 8v~32v

Rated charge current: 30a

Max. pv short circuit current: 30a

Max. pv open circuit voltage: 50v

Battery type: sealed(default)/gel/flooded

Warranty: 2 years
